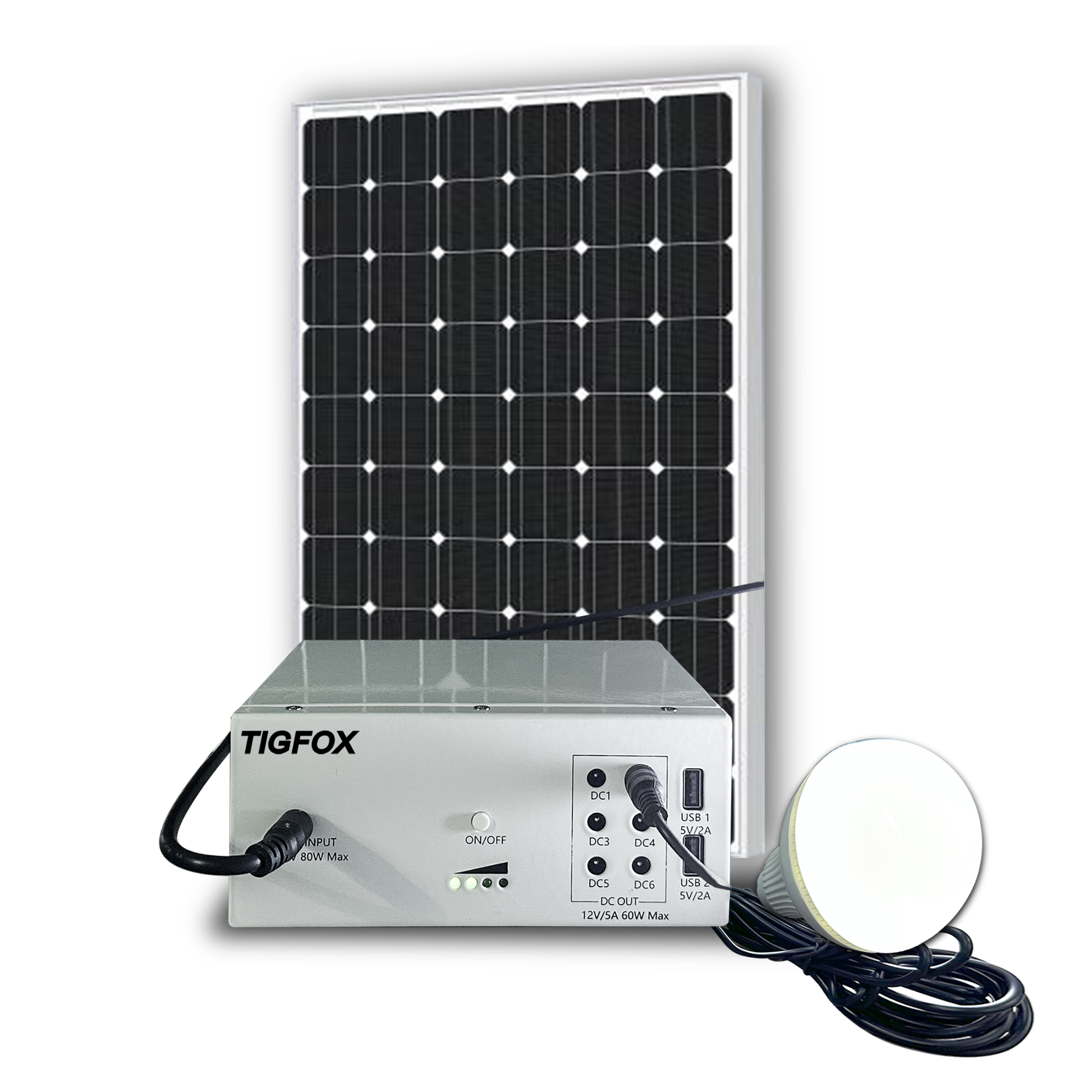

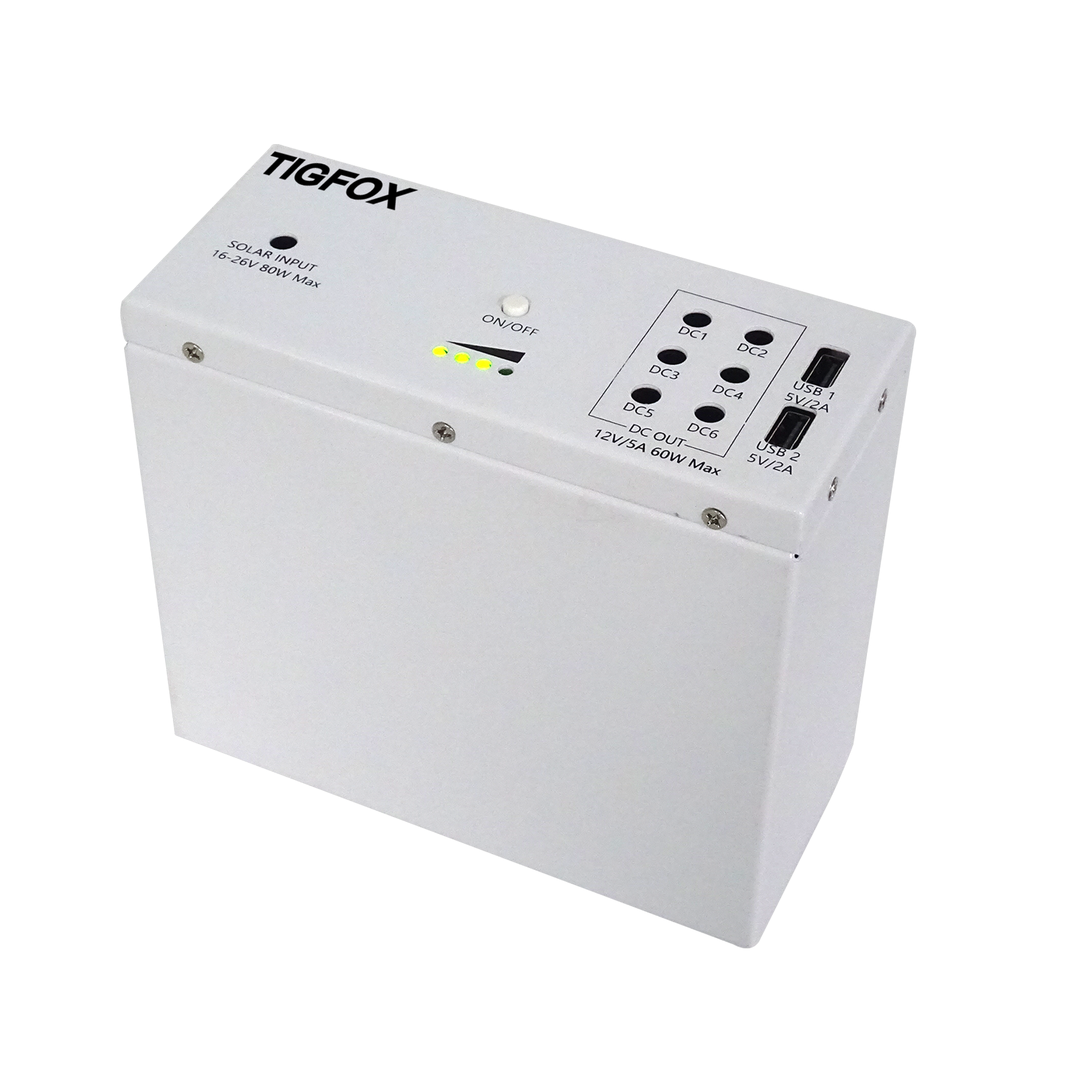

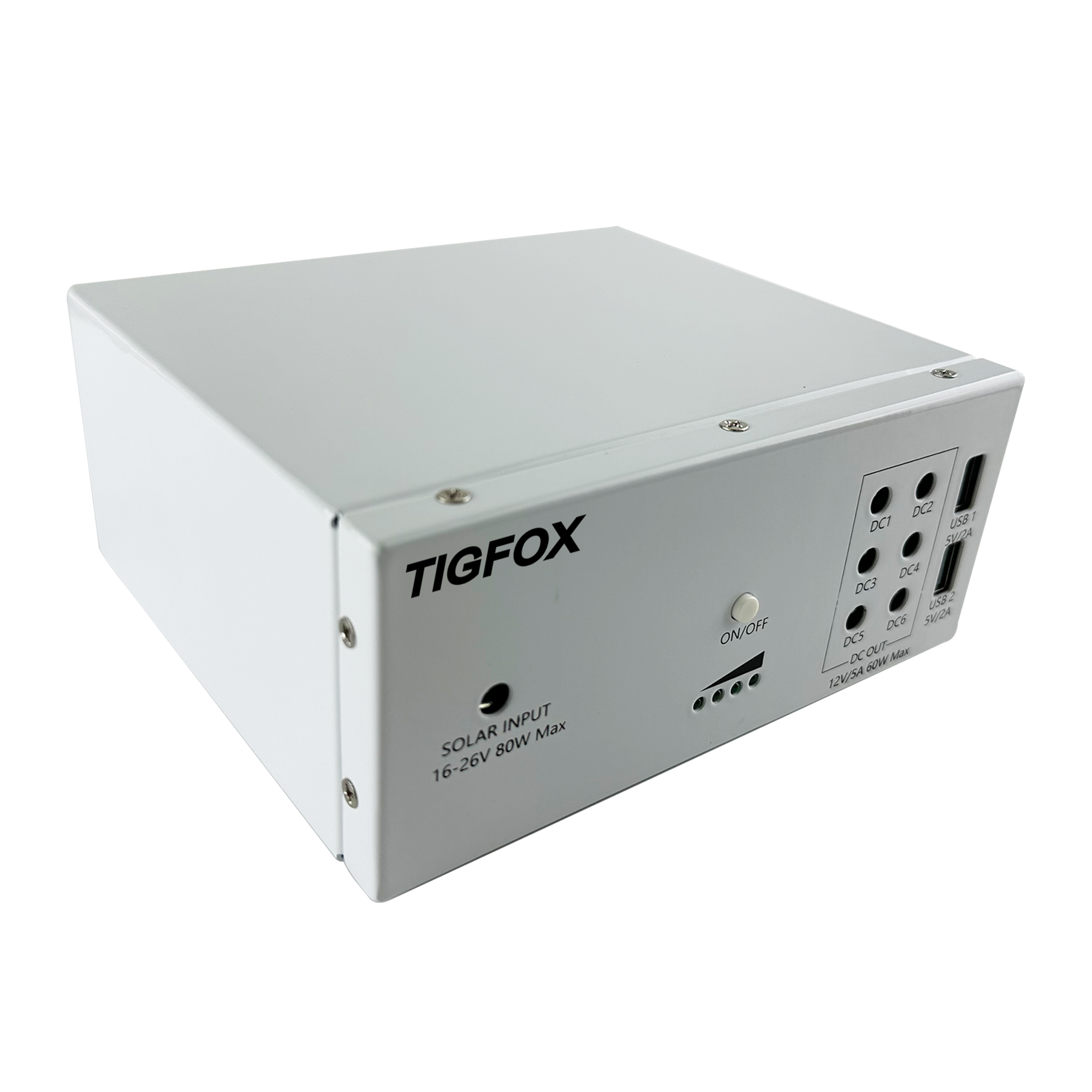

Mini home energy storage
|
||||||||
|
Product size
|

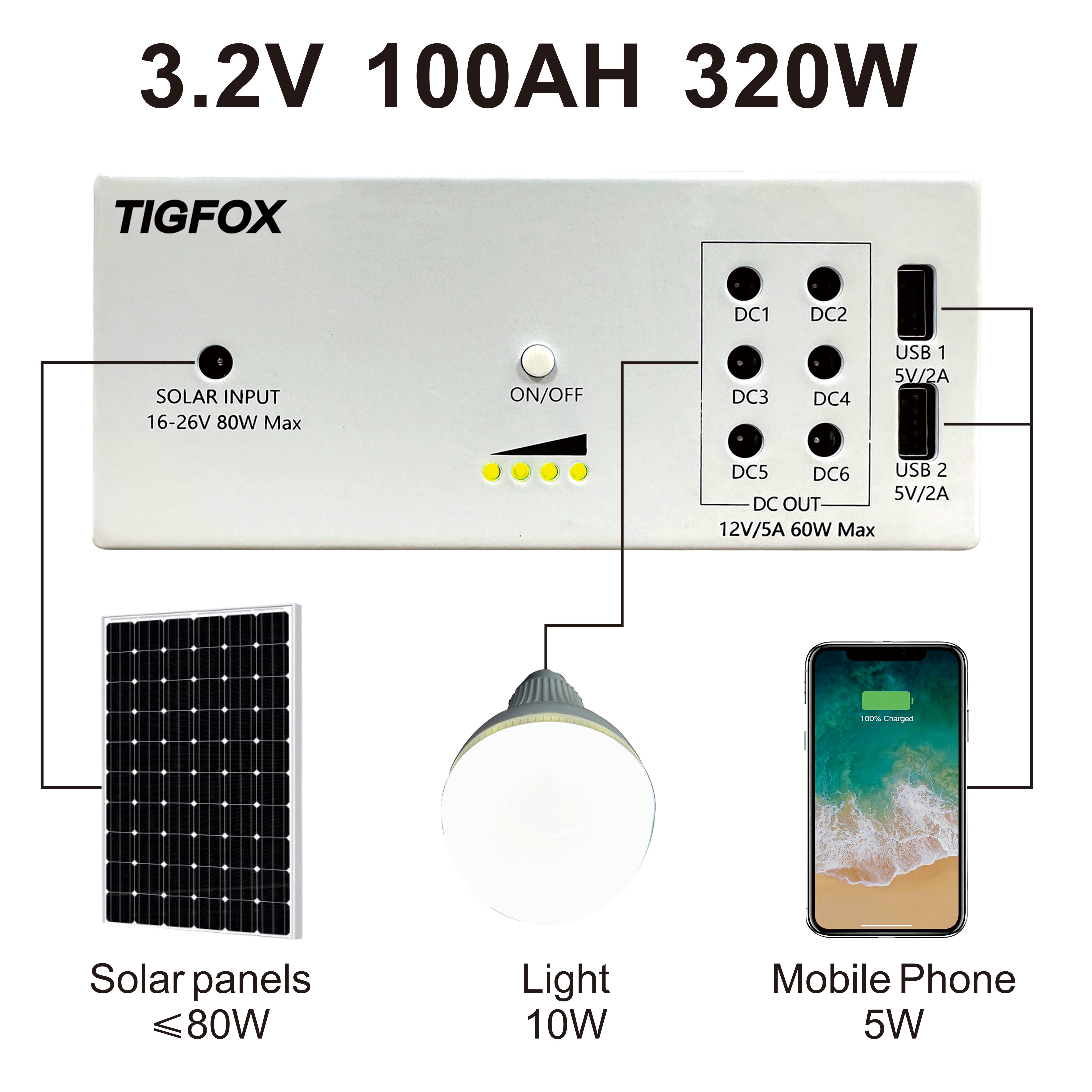

3.2v100ah 320wh IN;PV80W OUT;DC12v 60w~USB 5V 10W
|
|||||||
|
TYPE
|
ltems
|
Specification
|
Remarks
|
|||||
|
pv-Input
|
Enter specifications
|
17v-26V@80W Max
|
||||||
|
PV charging test
|
17v@18A +/-3A
|
Battery power must be between 20%-80%
|
||||||
|
Battery Activation
|
Battery enters protection state When the output is turned off Battery can be activated via PV input
|
|||||||
|
Side filling and side putting function
|
DC and USB output can be turned on when PV charging
|
|||||||
|
BMS
|
Battery Pack Specifications
|
3.2v 100ah 320wh
|
||||||
|
Battery capacity
|
100AH
|
|||||||
|
Cell specifications
|
3.2V100AH
|
|||||||
|
Short circuit protection
|
Short circuit lock requires electrical activation
|
|||||||
|
USB-A 5V-OUT
|
Output Port
|
USB-A*2
|
||||||
|
DC12V output specifications
|
5V 2A 10W Max
|
|||||||
|
Short circuit protection
|
hiccup output
|
|||||||
|
Overcurrent protection
|
Voltage limiting output
|
|||||||
|
over-temperature protection
|
125 ℃ junction temperature shutdown output
|
|||||||
|
DC12V-OUT
|
Output Port
|
DC5521*6
|
||||||
|
DC12V output specifications
|
12V 5A 60W Max
|
|||||||
|
Short circuit protection
|
hiccup output
|
|||||||
|
Overcurrent protection
|
Voltage limiting output
|
|||||||
|
over-temperature protection
|
125 ℃ junction temperature shutdown output
|
|||||||
